NDK Bootloader 开发指南

1. 背景介绍

BootLoader 是一个系统引导程序,用于引导 App 软件初始化、支持 DFU/OTA 升级等。由于实际产品中 BootLoader 是不可以或者很难更新的,因此一个稳定且易用的 BootLoader 是对整个系统的一个基本保障。

NDK Bootloader 例程代码位于:<PAN10XX-NDK>\01_SDK\nimble\mcu_boot\ 目录下。

2. Bootloader Config 配置

与 App 工程类似,Bootloader 工程中也提供了一个名为 sdk_config.h 的配置文件,但其配置项与 App 中的有所差异:

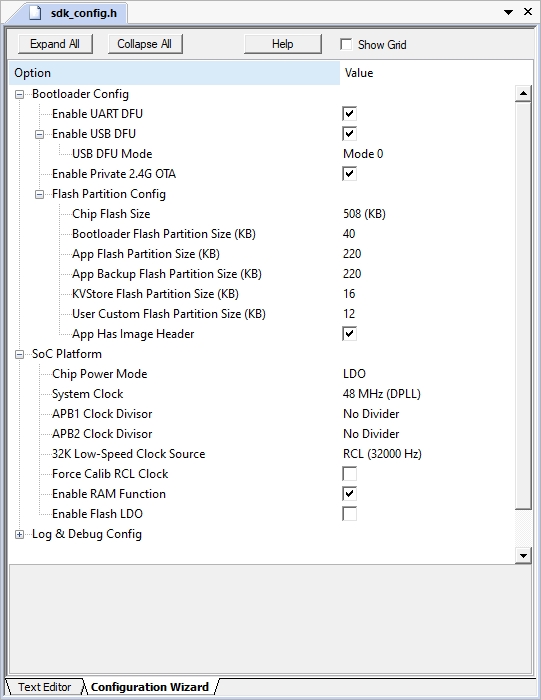

Bootloader Config File

2.1 Bootloader Config

Bootloader Config 是与当前 Bootloader 工程相关的配置,包括 Bootloader 支持功能的选择、Flash 分区配置等项目:

  1. Enable UART DFU:使能 Bootloader UART DFU 功能

    • 此功能基于 Xmodem 协议实现

  2. Enable USB DFU:使能 Bootloader USB DFU 功能

    • 通过子配置 USB DFU Mode 可以选择当前 USB DFU 升级模式,在不同模式下,USB DFU 上位机工具会执行不同的命令交互流程,具体解释如下:

      Select USB DFU mode, which would notify DFU Host (Panchip DFU Tool) to decide what to do when new image has been successfully upgrade to SoC flash (CRC ok).
      Mode 0:
      -> [Behavior] a. Jump to App (cmd 0x04 DFU End, param 0x00); b. DFU End
      -> [Note] For this mode, bootloader itself has responsibility to provide a way for entering USB DFU flow (such as key press event).
      Mode 1:
      -> [Behavior] a. Erase DFU flag on flash (cmd 0x06 DFU Force Upgrade, param 0x01); b. Stay in bootloader unless reset; c. DFU End
      -> [Note] App should set DFU flag to indicate bootloader to enter USB DFU proc.
      Mode 2:
      -> [Behavior] a. Erase DFU flag on flash (cmd 0x06 DFU Force Upgrade, param 0x01); b. Jump to App (cmd 0x04 DFU End, param 0x00); c. DFU End
      -> [Note] App should set DFU flag to indicate bootloader to enter USB DFU proc.
      Mode 3:
      -> [Behavior] a. Jump to App (cmd 0x04 DFU End, param 0x00); b. Wait for App USB enum OK; c. App Erase DFU flag on flash (cmd 0x06 DFU Force Upgrade, param 0x01); c. DFU End
      -> [Note] App should support USB HID, and support the DFU cmd 0x06 (DFU Force Upgrade) to set/erase DFU flag.

    • 默认的 Mode0 支持通过 EVB 按键 KEY2 进入 Bootloader USB DFU 流程

  3. Enable Private 2.4G OTA:使能 Bootloader 私有 2.4G OTA 功能

    • 此功能基于 Panchip 私有 2.4G OTA 升级协议实现

  4. Flash Partition Config:配置与 Bootloader 相关的 Flash 分区起始地址和大小(注意此处 Flash 分区配置需与 App 工程中的 sdk config 配置保持一致!

    • Chip Flash Size:指定当前芯片的 Flash 大小,需与实际使用的芯片 Flash 大小保持一致

      • 目前 PAN107x 芯片的 Flash 大小均为 512KB(其中尾部 4KB 为保留区域,存放芯片出厂校准信息,因此用户可用的实际空间为 508KB)

      • 目前 PAN101x 芯片的 Flash 大小均为 256KB(其中尾部 4KB 为保留区域,存放芯片出厂校准信息,因此用户可用的实际空间为 252KB)

    • Bootloader Flash Partition Size:设置 Bootloader Flash 分区大小(KB)

      • 将此项修改为非 0 值,表示为 Bootloader Image 预留的 Flash 空间大小

    • App Flash Partition Size:设置当前 App Flash 分区大小(KB)

      • 将此项修改为非 0 值,表示为 App Image 预留的 Flash 空间大小

    • App Backup Flash Partition Size:设置 App Backup Flash 分区大小(KB)

      • 根据当前项目需要,若需使用 App 备份区(如蓝牙 OTA 场景),则将此项修改为非 0 值

    • KVStore Flash Partition Size:设置 KVStore Flash 分区大小(KB)

      • 根据当前项目需要,若需使用 KVStore 分区,则将此项修改为非 0 值

    • User Custom Flash Partition Size:设置 User Custom Flash 分区大小(KB)

      • 根据当前项目需要,若需使用 User Custom 分区,则将此项修改为非 0 值

    • App Has Image Header:表示 App Image 具有 Image Header

      • 当前 SDK 框架下,若使用 Bootloader,则 App 必须同时使能 App Image Header,所以此选项必须勾上(且应与 App Config 中的对应选项保持一致)

2.2 SoC Platform

SoC Platform 是与芯片平台相关的配置,包括时钟、电源、平台相关的特殊 Feature 等项目。

Bootloader 中的此项菜单实际上是 App Config 中对应项菜单的子集,详情参考 NDK Configuration 指南

2.3 Log & Debug Config

Log & Debug Config 是与芯片 Log 功能和调试相关的配置。

Bootloader 中的此项菜单实际上与 App Config 中对应项菜单相同,详情参考 NDK Configuration 指南

3 BootLoader 升级流程和策略

BootLoader 启动的时候,会等待很多个信号,然后依次 trigger 信号的操作。

// signals:
bool sig_key1_push_down(void);
bool sig_key2_push_down(void);
bool sig_ota_start_received(void);
bool sig_back_up_is_completed_image(void);
void sig_hardware_recovery(void);
bool sig_usb_dfu_enter_check(void);

// slots:
void on_usb_dfu_enter(void);
void on_prf_ota_enter(void);
void on_uart_dfu_enter(void);
void on_image_load_enter(void);

连接信号和槽

typedef void (slot_handler_t)(void);
typedef void (signal_handler_t)(void);

void connect(uint8_t priority, signal_handler_t signal, slot_handler_t slot);

事件检测流程

    /* If backup image is valid, the on_image_load_enter function will be handled */
    ss_connect(0, sig_back_up_is_completed_image, on_image_load_enter);

#if BOOT_ENABLE_UART_DFU
    /* when detecting key1 down, the on_uart_dfu_enter function will be handled */
    ss_connect(1, sig_key1_push_down, on_uart_dfu_enter);
#endif

#if BOOT_ENABLE_USB_DFU
#if BOOT_USB_DFU_MODE == 0x00 // Use a GPIO Key to trigger entering USB DFU Mode
    /* If key2 is pressed down, the on_usb_dfu_enter function will be handled */
    ss_connect(2, sig_key2_push_down, on_usb_dfu_enter);
#endif // BOOT_USB_DFU_MODE == 0x00
    /* If the DFU flag on flash is detected, the on_usb_dfu_enter function will be handled */
    ss_connect(3, sig_usb_dfu_enter_check, on_usb_dfu_enter);
#endif // BOOT_ENABLE_USB_DFU

#if BOOT_ENABLE_PRF_OTA
    /* If a 2.4G ota start packet is received, the on_prf_ota_enter function will be handled */
    ss_connect(4, sig_ota_start_received, on_prf_ota_enter);
#endif

    /* Start to handle all of events related signal functions */
    ss_events_handle();

3.1 USB DFU 模式

void on_usb_dfu_enter(void);

进入 DFU 流程,插上 USB 后会将其枚举为 Panchip 自定义的 USB-HID 设备,并准备接收 Panchip USB DFU 上位机工具的交互指令。

3.2 UART DFU 模式

void on_uart_dfu_enter(void);

进入 DFU 流程后,会采用 xmodem 协议进行OTA升级。

3.3 PRF OTA 模式

void on_prf_ota_enter(void);

待升级设备复位进入 PRF OTA 状态,新 App 固件可通过 2.4G Dongle 发送给待升级设备。

3.4 Backup DFU 模式

尝试校验 Flash App Backup 分区中的固件, 以决定是否要将其搬移至 Flash App 分区。

4. UART DFU 升级详解

升级的固件需要签名校验,默认 keil 编译的时候,在工程的同级目录Images下会自动生成 ndk_app.signed.bin 的签名 Image:

4.1 检测并进入 UART DFU 升级模式

  1. 在 Bootloader Config 配置中使能 UART DFU 功能

  2. 编写 UART DFU 进入的 Signal 函数,并将信号和槽连接,槽属于升级流程 BootLoader 已经支持,用户不需要修改。用户可以修改 signal 函数。默认如下:

    #if BOOT_ENABLE_UART_DFU
        /* when detecting key1 down, the on_uart_dfu_enter function will be handled */
        ss_connect(1, sig_key1_push_down, on_uart_dfu_enter);
    #endif

    /* user can implement a custom signal fucntion */
    bool sig_key1_push_down(void)
    {
        GPIO_SetMode(P0, BIT6, GPIO_MODE_INPUT);
        GPIO_EnablePullupPath(P0, BIT6);
        SYS_delay_10nop(10000);

        for (uint16_t i = 0; i < 1000; i++) {
            if (P06 == 1) {
                return false;
            }
        }
        return true;
    }

  3. 下载 BootLoader 和 App 程序,App 程序配置为带 Bootloader 的方式

4.2 操作流程

  1. 准备好 Bootloader Image

  2. 准备好待升级的 App Image(例如 ble_periph_hr_ota)

  3. 使用工具SecureCRT进行升级

  4. 打开工具SecureCRT连接设备串口,串口波特率 921600

  5. 按住 EVB 底板的 KEY1 按键不松开,然后再按一下 EVB 底板或核心板的 Reset 按钮复位芯片,查看工具 SecureCRT 上 log 打印,一直输出 CCCCCCCCCC

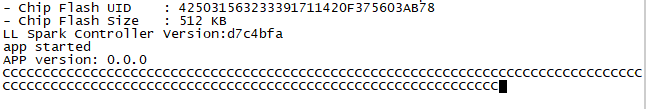

    PAN107x UART DFU进入升级模式

  6. 在工具 SecureCRT 的”传输”界面选择”发送Xmodem(N)”,选择待升级工程的文件,位于image路径下: ndk_app.signed.bin,文件开始传输

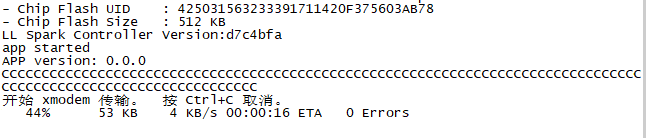

    PAN107x UART DFU传输文件

  7. 再次复位芯片,观察串口 log,确认已经打印升级后的程序log

5 USB DFU 升级详解

升级的固件需要签名校验,SDK 中 Keil 工程编译的时候,在工程的同级目录 Images 下会自动生成 ndk_app.signed.bin 的签名后 Image:

5.1 检测并进入 USB DFU 升级模式

  1. 在 Bootloader Config 配置中使能 USB DFU 功能

  2. 编写 USB DFU 进入的 signal 函数,并将信号和槽连接,槽属于升级流程 BootLoader 已经支持,用户不需要修改。用户可以修改 signal 函数。默认如下:

    #if BOOT_ENABLE_USB_DFU
    #if BOOT_USB_DFU_MODE == 0x00 // Use a GPIO Key to trigger entering USB DFU Mode
        /* If key2 is pressed down, the on_usb_dfu_enter function will be handled */
        ss_connect(2, sig_key2_push_down, on_usb_dfu_enter);
    #endif // BOOT_USB_DFU_MODE == 0x00
        /* If the DFU flag on flash is detected, the on_usb_dfu_enter function will be handled */
        ss_connect(3, sig_usb_dfu_enter_check, on_usb_dfu_enter);
    #endif // BOOT_ENABLE_USB_DFU

    /* user can implement a custom signal fucntion */
    bool sig_key2_push_down(void)
    {
        GPIO_SetMode(P1, BIT2, GPIO_MODE_INPUT);
        GPIO_EnablePullupPath(P1, BIT2);
        SYS_delay_10nop(10000);

        for (uint16_t i = 0; i < 1000; i++) {
            if (P12 == 1) {
                 return false;
            }
        }

       return true;
    }

    bool sig_usb_dfu_enter_check(void)
    {
        return is_dfu_flag_valid();
    }

    /* user can implement a custom dfu flag checking flow */
    bool is_dfu_flag_valid(void)
    {
    	const uint32_t flash_sector_start_addr = CONFIG_FLASH_PARTITION_USER_CUSTOM_ADDR + CONFIG_FLASH_PARTITION_USER_CUSTOM_SIZE - 0x1000; // last user custom sector
    	uint8_t dfu_flag;

    	dfu_flag = FMC_ReadByte(FLCTL, flash_sector_start_addr, CMD_DREAD);

    	if (dfu_flag == USB_DFU_ENTER_FLAG) {
    		return true;
    	} else {
    		return false;
    	}
    }

  3. 下载 BootLoader 和 App 程序,App 程序配置为带 Bootloader 的方式

5.2 操作流程

  1. 准备好 Bootloader Image

  2. 准备好待升级的 App Image(例如 ble_periph_hr_ota)

  3. 将 EVB 底板的 USB 口连接到 PC

  4. 按住 EVB 底板的 KEY2 按键不松开,然后再按一下 EVB 底板或核心板的 Reset 按钮复位芯片,可从 Log 中观察到成功进入了 Bootloader USB DFU 流程:

    Try to load HW calibration data.. DONE.
    - Chip Info         : 0x61
    - Chip CP Version   : 255
    - Chip FT Version   : 7
    - Chip MAC Address  : E11000014DE5
    - Chip UID          : B90801465454455354
    - Chip Flash UID    : 4250315A3538380B01FD8B435603EF78
    - Chip Flash Size   : 512 KB (Inc. 4KB Panchip Info Area)

    Bootloader in..

    [I] Check valid image in App Backup Partition..
    [I] Entering USB DFU flow..
    [I] Found an App Image, version: 0.0.1.0
    [I] USB init done, INT_USBE: 0x1c
    [I] Wait for DFU Comm..
    [I] ---USB plug in---
    [I] USB isr in: Reset evt
    [I] USB isr in: Reset evt

  5. 打开 NDK 中 05_TOOLS/量产烧录工具/Panhcip DFU Tool 目录下的 PanchipDFUTool Vx.x.xxx.exe,界面右上角的芯片平台选择 PAN10xx NDK

    • 注意:需确保工具版本为v0.1.015或更高版本

  6. 直接点击功能列表中的读取设备版本信息按钮,工具会立刻扫描查找支持 Panchip USB DFU 的 USB-HID 设备,成功后会获取到芯片当前 App 固件版本等信息

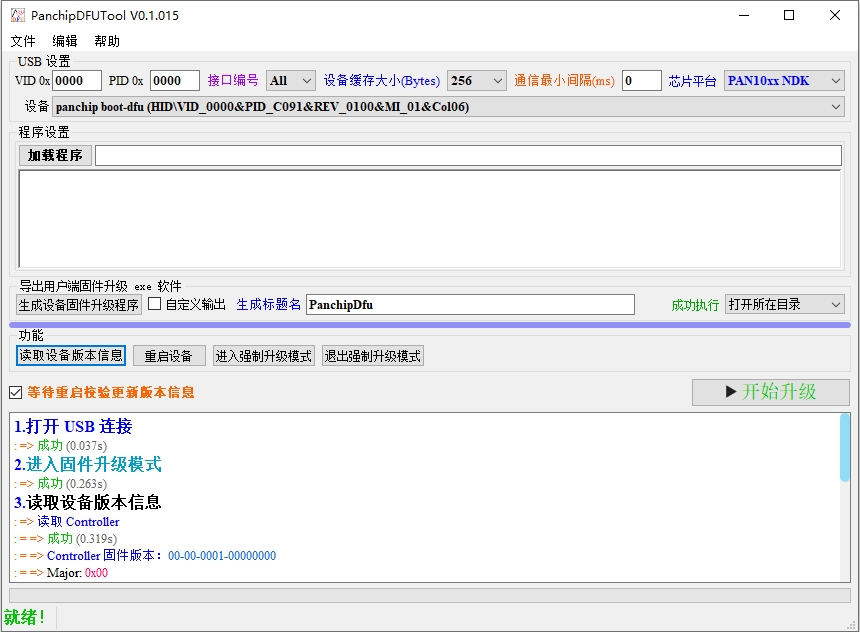

    识别 USB 设备并获取芯片当前固件版本信息

  7. 在工具程序设置那里选择加载程序,选择待升级工程的文件,位于 Images 路径下: ndk_app.signed.bin

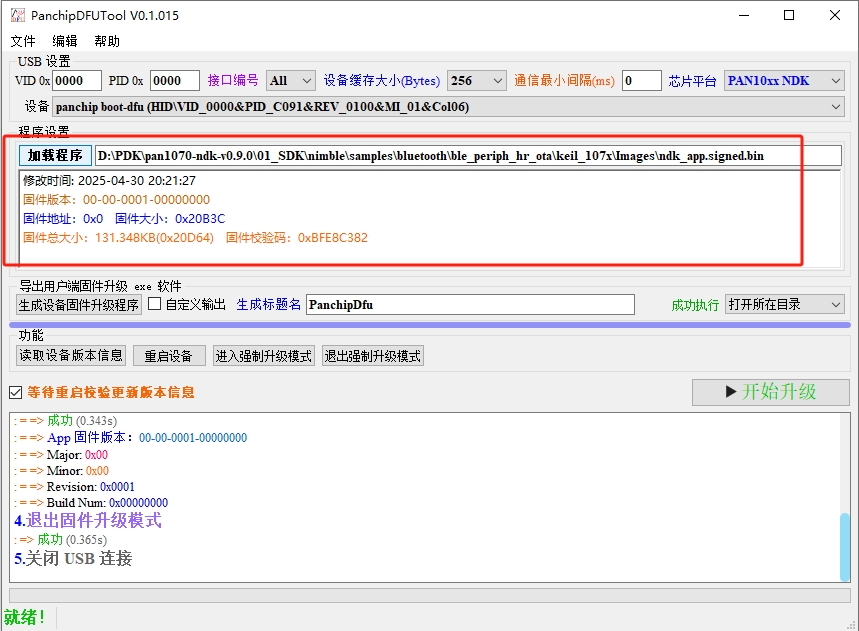

    上位机工具成功载入待升级的新固件

  8. 程序加载成功后,点击开始升级按钮,稍等片刻即可升级完成

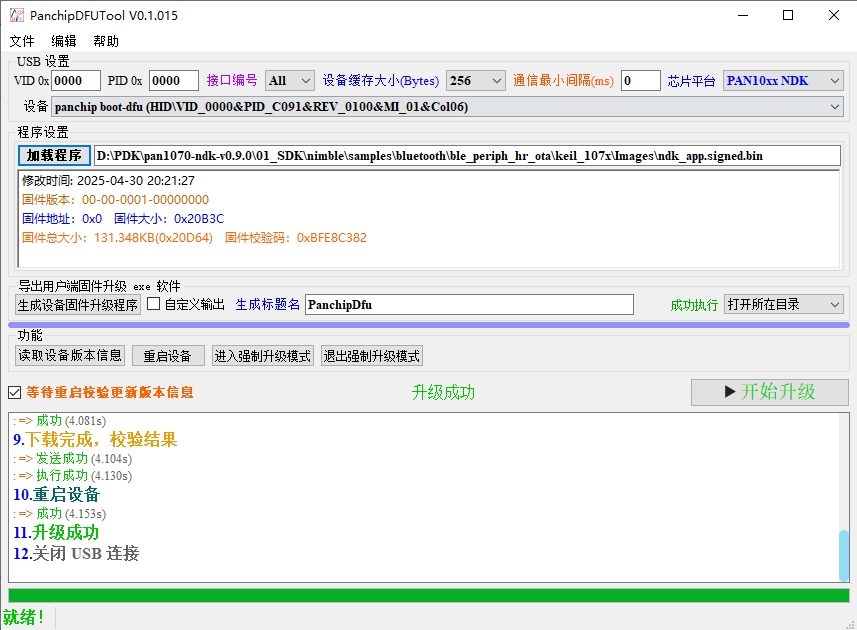

    Bootloader USB DFU 升级成功

  9. 升级成功后芯片程序会立刻从 Bootloader 跳转到 App 区域执行升级后的新固件

6 PRF OTA 升级详解

  1. 打开工具 NDK 中 05_TOOLS/OTA工具/Panhcip 2.4G OTA 目录下的 Panchip 2.4G OTA Vx.x.xxx.exe,选择 2.4G Dongle 对应的串口,具体设置如下图所示:

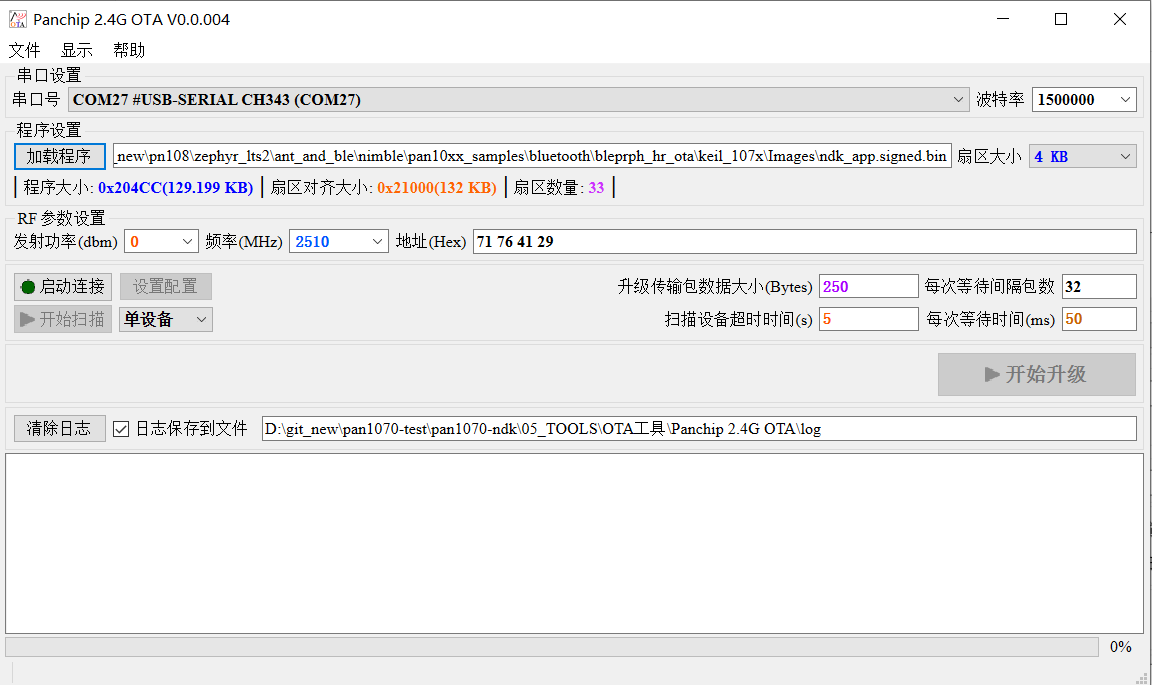

    PRF OTA 上位机工具界面

  2. 2.4G Dongle 硬件需向 Panchip 申请或购买

  3. 上位机工具的使用说明请参考其自带的帮助文档

注意:2.4G 多设备升级不会进行校验,因此不能确保每个设备都能升级成功,有些设备如果升级不成功需要重新升级。
